Filter unit w/suction pump, 100-120 l/hr

Produktnummer: WP1-P1-100

inkl. mva.

Technical specifications:

Oil Pressure In: Maximum 1 BAR
Oil Suction Height: 4-6 m depending on viscosity and temperature
Oil Pressure Out: 1 BAR
Filtered Oil Flow: 90 - 120 litres/hour
Viscosity: 20-320 cSt
Power Supply: 230VAC 50/60 Hz
Power Consumption: 125 W
Connections: Inlet ½” RG, Outlet ½” RG (BSP)
Dimensions H x W x D: 423 x 426 x 280 mm
Weight: 19 Kg.
Materials: Filter canister and chassis: AISI 304 Stainless.


Oil filter unit with circulation pump

The WP1-P1-100 filter unit is used for continuous off-line filtration of engine, transmission and hydraulic oils.
The filter unit is used widely in the maritime business and in the industry to obtain optimal operating conditions and longer life-times for engines, equipment and plants.

The WP1-P1-100 is used for oil cleaning in oil sumps and tanks, and the system is highly suitable for batch refining of new oils before use. As an option the unit can be delivered as a mobile system with a integrated trolley.


Basically the system consists of a pump, and a GreenOil filter.
The WP1 operates independently of the sys-tem to which it is connected.


  • Cleanliness levels suitable for high pressure hydraulic systems.
  • Different filter inserts are available for engine, transmission or hydraulic oils.
  • Easy and quick filter change without oil spillage.
  • Stainless filter canister and chassis.
  • No physical contact with the oil when replacing the filter insert.
  • No tools required for filter replaceme
Technical Data
Filtered oil flow 100-120 litres/hour
Oil pressure in, max 1 bar
Oil suction height 6 m
Viscosity 460 cSt
Power supply (VAC-Hz) 230/ 3x440-50/60
Power consumption 125 Watt
Connection in 1/2"-BSPT
Connection out 1/2"-BSPT
Dimensions 426 x 426 x 280 mm3
Materials AISI 304 Stainless
Number of canisters 1
Canister volume (L) 8
Alarm Option
Panel Option
Mobile Offline Oil Filter 100 l/t

Filter unit w/suction pump, 200-240 l/hr

Oil Filter, w/suct. pump. 400 l/hr

GreenOil Filtersystem, 750 l/hr, 400/440v

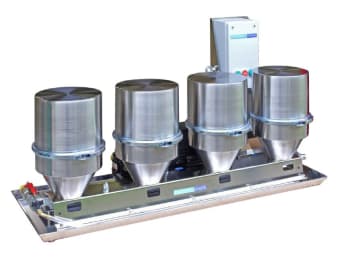

GreenOil filtersystem, 1000 l/h, 400/440V
