BU-200 Bypass Oil Cleaner, Flow ~4,0 l/m

Produktnummer: TR-19200
Lagerbeholdning:

inkl. mva.

BU Series
The BU Series for hydraulic oil is connected to the installation as a bypass, making use of the available pressure with a maximum up to 343 bar. The system ensures an effective filtering of all dirt particles, moisture and oxidation products (resins) which usually cannot be removed with standard filters. The BU series is available in aluminium (BU-30, 50 & 100) and stainless steel 304 (BU-200 and BU-300). The BU-100, 200 and 300 are also available for use with Water Glycol.

Increases reliability and deployability of machine

  • Extends the life of the oil
  • Extends the life of current filters
  • Reduces maintenance costs
  • Reduces machine idleness
  • Relieves the environment
Technical data
Flow rate 4 l/min
Thread in 1/4"-BSPT
Thread out 1/4"-BSPT
Element type Size 100 elements, M, E, X, D and WE series
Number of elements 2
Max pressure Relief valve opens at 4,5 bar
Weight 8 kg
Dimension 240 x 240 x 410 mm3
Material Stainless steel
BU-30 Bypass Oil Cleaner, Flow ~1,0 l/m

TR-19450
BU-50E Bypass Oil Cleaner, Flow ~1,5 l/m

TR-19650

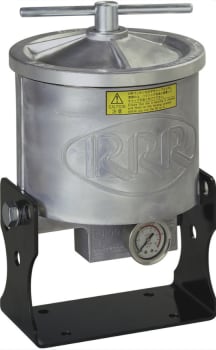

BU-100 Bypass Oil Cleaner, Flow ~2,0 l/m

TR-19530
BU-300 Bypass Oil Cleaner, Flow ~6,0 l/m

TR-19320
