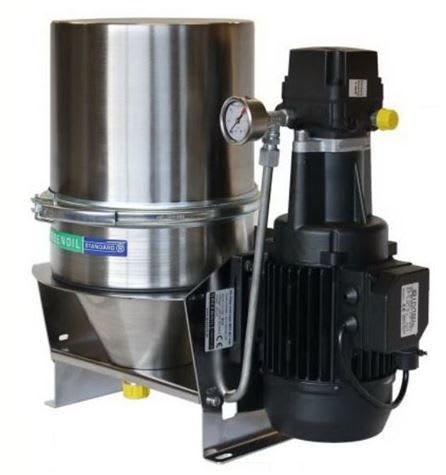

Oil filter unit with suction pump
The WP1-B1-100 system is used for cleaning of EAL bio, lubrication, hydraulic and gear oil. The system removes water, soot, particles, varnish and any insoluble in the oil.
The filter system is used in the maritime business and other industries to obtain optimal operating reliability of equipment and to extend lifetime of oil.
The system comprises of a pump and motor unit together with a GreenOil filter and a built in water separator. The pump continuously feeds the oil through the filter, where particles and water are removed. The oil is then returned by gravity back to the equipment.
The patended water separator is unique because the oil passes through and the water is separated by heated air. The process results in removing free, dissolved and bound water without damaging the oil.
The filter inserts is replaced without the use of tools, oil spill or physical contact with the oil.
Ideal for engines, hydraulic and gear applications.
- Integrated oil filter and water separator
- Patended water separator removing free, emulsified and bound water down to 30 ppm
- Easy and quick filter change without oil spill
- No tools required for filter replacement
- No physical contact with oil when replacing filter insert
|Filtered oil flow||100-120 litres/hour|
|Oil pressure in, max||1 bar|
|Oil suction height||6 m|
|Power supply (VAC-Hz)||230/3x440-50/60|
|Power consumption||245 Watt|
|Dimensions||423 x 426 x 280 mm3|
|Materials||AISI 304 Stainless|
|Number of canisters||1|
|Canister volume (L)||8|
