Oil Pressure In: Maximum 1 BAR
Oil Suction Height: 4-6 m depending on viscosity and temperature
Filtered Oil Flow: 250-300 litres per hour
Viscosity: 0-25 cSt.
Power Supply: 230VAC 50/60 Hz
Power Consumption: 250 W
Connections: Inlet/outlet 1/2” RG(BSP)
Dimensions H x W x D: 423 x 426 x 280 mm
Weight: 19 Kg.
Materials: Filter housing,chassis and tank (C1-500): AISI 304 Stainless.
Complete system for maintenance of marine diesel and gas oil
The WP1-C1-250 filter unit is used for continuous off-line filtration and water separation of marine diesel and gas oil.
The filter unit is used widely in the maritime business and in the industry to obtain optimal operating reliability and longer lifetime for engines, equipment and plants.
The WP1-C1-250 is used for cleaning of marine diesel in tanks or as an additional transfer system from settling/bottom tanks to day tank. The unit removes particles and water from the marine diesel or gas oil.
Basically the system consists of a pump, and a GreenOil filter and a built in water separator.
The build in pump continuously feeds the oil through the filter insert, through the water separator where the water is removed and back to the system. Water can be drained from the filter unit.

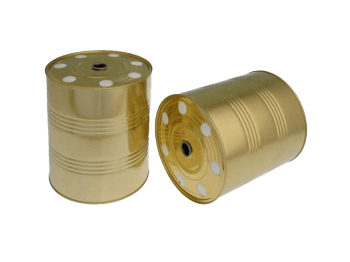

Particle filtration is performed with the GreenOil range of filter inserts. The oil quality is then prepared for very sensitive fuel systems and for applications in high pressure systems.
Filter insert is replaced without the use of tools and without physical contact with the oil.
- Easy and quick filter change without oil spillage.
- Stainless filter canister and chassis.
- No physical contact with oil when replacing filter insert.
- No tools required for filter replacement.
- Manual water drain for evaluation of oil quality.
|Filtered oil flow||250-300 litres/hour|
|Oil pressure in, max||1 bar|
|Oil suction height||6 m|
|Power supply (VAC-Hz)||230-50-60 or 3x440-50/60|
|Power consumption||250 Watt|
|Dimensions||426 x 426 x 280 mm3|
|Materials||AISI 304 Stainless|
|Number of canisters||1|
|Canister volume (L)||8|
