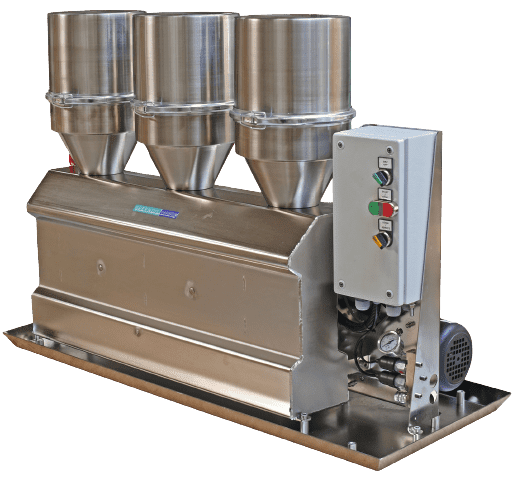

GreenOil Filtersystem for MDO/MGO, 1300-1500 l/h,

Produktnummer: WP1-C3-1500
Lagerbeholdning:

inkl. mva.

Complete System for marine diesel and gas oil

The WP1-C3-1500 is used for cleaning of marine diesel and gas oil. This can be placed in the fuel transfer system between the settling/bottom
tank and the service/day tank or alternatively as an off-line system in either tank used to recirculates the oil. The unit removes particles and water from marine diesel or gas oil.
The filter system is widely used in the maritime business and in the industry to obtain optimal reliability and longer lifetime for engines, and equipment.

Functions
The system comprises of a pump and motor unit together with a GreenOil filter and built in water separator.
The pump continuously feeds the oil through the filter, and the water separator where the particlesand water are removed. The oil then returns to the tank and the water drains from the system. All particle filtration is performed using the GreenOil range of filters. This results in having the cleanest possible oil ready for use, including forthose applications having very sensitive fuel systems or of high pressure type


Key Features

  • Fully replace purifier/separator.
  • Removes bacterial contamination in the oil.
  • Easy and quick filter change without oil spill.
  • No tools required for filter replace­ ment.
  • No physical contact with oil when replacing filter insert.
  • Complete unit in AISI 304 Stainless.
Technical Data
Filtered oil flow 1300-1560 litres/hour
Oil pressure in, max 1 bar
Oil suction height 4 m
Viscosity 25 cSt
Power supply (VAC-Hz) 3x440-50/60
Power consumption 550 Watt
Connection in 3/4"-BSPT
Dimensions 775x1105x435 mm3
Weight 85 kg
Materials AISI 304 Stainless steel
Number of canisters 3
Canister volume (L) 8
Alarm Option
Panel Standard
