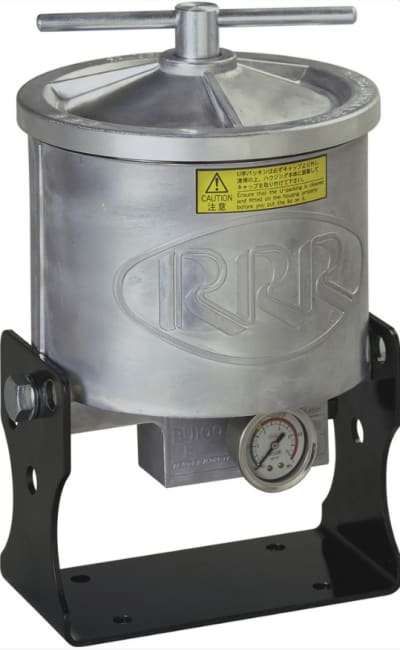

BU-100WG Oil Cleaner For Water Glycol, Flow ~2,0 l/m

Produktnummer: TR-19550

inkl. mva.

Technical specifications:

Model: BU-100WG
Article nr.: TR-19550
Pressure: Max. pressure: 6 bar. Max. pressure flowcontrol (IN) 343 bar. Internal safety opens at 4.5 bar
Flow: ~2,0 l/m
In/Out: 1/4’’ x 3/8’’
Element Type: 100 series, type WG- DWG
Nr. of Elements: 1
Weight (kg): 6,5
Dim. w x h (cm): 23 x 60
Material: BU-100: Treated aluminium.
Contents: Package contains first (set of) element(s), pressure gauge and mounting bracket

BU Series

The BU Series for hydraulic oil is connected to the installation as a bypass, making use of the available pressure with a maximum up to 343 bar. The system ensures an effective filtering of all dirt particles, moisture and oxidation products (resins) which usually cannot be removed with standard filters. The BU series is available in aluminium (BU-30, 50 & 100) and stainless steel 304 (BU-200 and BU-300). The BU-100, 200 and 300 are also available for use with Water Glycol.

Increases reliability and deployability of machine

  • Extends the life of the oil
  • Extends the life of current filters
  • Reduces maintenance costs
  • Reduces machine idleness
  • Relieves the environment
Technical data
Flow 1.5 l/min
Thread in 1/4"-BSPT
Thread out 3/8"-BSPT
Element type Size 100 elements, M, E, X, D and WE series
Number of elements 1
Max pressure Relief valve opens at 4,5 bar
Weight 6.5 kg
Dimension 230 x 170 x 320 mm3
Material Aluminium
Technical specifications
Width 230 mm
