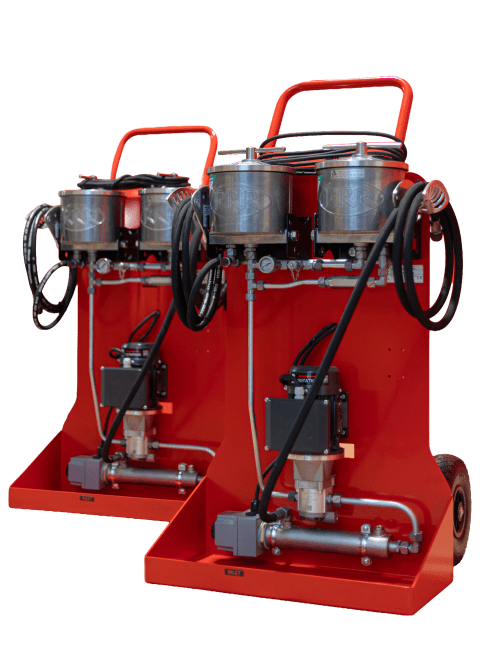

SE-200-MHTW Mobile offline filter 230V - 5 l/min
Produktnummer: UTL02
Passer til: Smøreolje, drivstoff og hydraulikkolje
Fordeler: En mobil oljerenser gir fleksibel og effektiv filtrering ved service og vedlikehold, og er også perfekt for rensing av ny olje før den fylles på tank eller system.
Informasjon: Ved leie av filter trenger du også tilbehør som kommer i tillegg til prisen. Se fullstendig oversikt over tilbehør og alternativer til filtersystemet lengre ned.
Avtale vilkår finner du her: PDF med oversikt over vilkår i forbindelse med leie
Leiepris
- 1 dag: X
- 1 uke: X
- Langtidsleie: Ta kontakt for pris
Following setups and combinations are available on request:
- for LUBE oil (L)
- for DIESEL fuel (D)
- for WATER GLYCOL fluids (W)
- with 24V motor
- with 100Vx1 or 200Vx3 motor, 60 Hz
- ATEX version.
A mobile oil cleaner is perfect for your service & maintenance activities, or for filtering new fresh oil. We built a very handy mobile rig that can be used for a big variety of applications and service tasks.
Features
- Compact mobile bypass oil cleaner.
- With 230V Preheater installed.
- Ideal maintenance Oil Cleaner in combination with our i-OC Monitoring systems.
- Low running cost, easy installation & manipulation.
- Also available with 4 housings or with SS and SU filter housings, for bigger flow rates.
- Performs 3-in1 Oil Filtration = removing all the particles that are very difficult to remove with full flow filters, and performing absolute Oil Cleaning by removing solid particles, absorbing water and eliminating sludge and oil oxidation residues.
Benefits
- Improves productivity and machine reliability.
- Prevents breakdowns to the hydraulic equipments.
- Longer life of all hydraulic components, pumps, servo-valves and other equipment.
- Very important reduction of the oil consumption cost and the resulting waste oil expenses.
- Discharges the very expensive full flow filters and extends their life (50% - 80% cost saving!).
- Significant reduction of maintenance expenditures.
| Data Specifications | |
|---|---|
| Flow | ~5 l/min |
| Thread in | 1/2"-BSPT |
| Thread out | 3/8"-BSPT |
| Element type | 100 Serie, M - E - X - D - WE Type |
| Number of elements | 2 |
| Max pressure | No pressure should be present, pump is selfpriming. Pump safety opens at 6 bar |
| Dimension | 1200x610x585 mm3 |
Finn ut mer om filteret
Våre kunder har brukt dette filteret i mange år og er kjempe fornøyd. Du kan lese mer om de ulike casene våre her.
Ønsker du å kjøpe filteret?
Vi tilbyr kjøp av filter etter endt leieperiode, ta kontakt for mer informasjon
