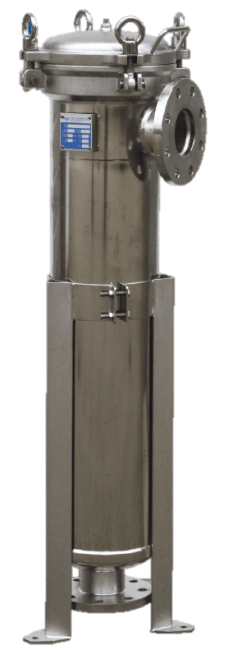

Mini and TWP Stainless Bag Filters

HiFlux Mini and TWP Bag Filters are used where there is a need for reliable fine filtration from 1 micron with a large dirt capacity. The filter housings are designed for a working pressure of 10 bar (Mini 8.5 bar) and equipped with a simple and secure closing system which makes it quick to change filter bags, thereby maximising the time the filters are in operation.

A compact design and a maximum built-in filter surface ensure the best possible flow and consequently a small differential pressure, long intervals between bag changes and lower energy consumption.

The filter consists of three main elements

1. Filter housing which is designed in accordance with current pressure vessel norms and supplied in stainless acid-proof SUS316 steel (Mini EN 1.4404).
2. The support strainer which gives the filter bag mechanical strength and ensures that the bag can resist a differential pressure of up to 1 bar. The support strainer is made of stainless acid-proof SUS316 steel to ensure durability.
3. The filter bag is supplied in several material types and degrees of filtration. A special design in terms of stitching and choice of thread provides a robust filter bag without perforations.The filter material is selected after careful determination of the degree of filtration and maximum dirt capacity (see also data sheet for filter bags).

Filters of the TWP type can be supplied with the effective HiFlux magnetic system for retention of magnetic particles.
